As we run, drive, bike, and fly, we go away behind telltale marks of our actions on Earth—if you recognize the place to look. Bodily tracks, thermal signatures, and chemical traces can reveal the place we’ve been. However one other kind of path we go away comes from the radio indicators emitted by the automobiles, planes, trains, and boats we use.

On airplanes, expertise referred to as ADS-B (Computerized Dependent Surveillance–Broadcast) supplies real-time location, identification, pace, and orientation knowledge. For ships at sea, that perform is carried out by the AIS (Computerized Identification System).

Working at 161.975 and 162.025 megahertz, AIS transmitters broadcast a ship’s identification quantity, identify, name signal, size and beam, kind, and antenna location each six minutes. Ship location, place time stamp, and path are transmitted extra regularly. The first objective of AIS is maritime security—it helps stop collisions, assists in rescues, and supplies perception into the influence of ship site visitors on marine life. US Coast Guard rules say that usually, personal boats below 65 ft in size usually are not required to make use of AIS, however most business vessels are. In contrast to ADS-B in planes, AIS could be turned off solely in uncommon circumstances.

Quite a lot of sectors use AIS knowledge for a lot of completely different purposes, together with monitoring ship site visitors to keep away from disruption of undersea web cables, figuring out whale strikes, and finding out the footprint of underwater noise.

Utilizing the US Nationwide Oceanic and Atmospheric Affiliation’s Marine Cadastre software, you possibly can obtain 16 years of detailed each day ship actions, in addition to “transit rely” maps generated from a 12 months’s price of knowledge exhibiting every ship’s collected paths. The information is collected totally from ground-based stations alongside the US coasts.

I downloaded all of 2023’s transit rely maps and loaded them up in geographic data system software program referred to as QGIS to visualise this 12 months of marine site visitors.

The maps are summary and electrical. With landmasses eliminated, the ship traces resemble long-exposure images of sparklers, high-energy particle collisions, or strands of fiber-optic wire.

DATA: NOAA; MAP: JON KEEGAN / BEAUTIFUL PUBLIC DATA

DATA: NOAA; MAP: JON KEEGAN / BEAUTIFUL PUBLIC DATA

DATA: NOAA; MAP: JON KEEGAN / BEAUTIFUL PUBLIC DATA

DATA: NOAA; MAP: JON KEEGAN / BEAUTIFUL PUBLIC DATA

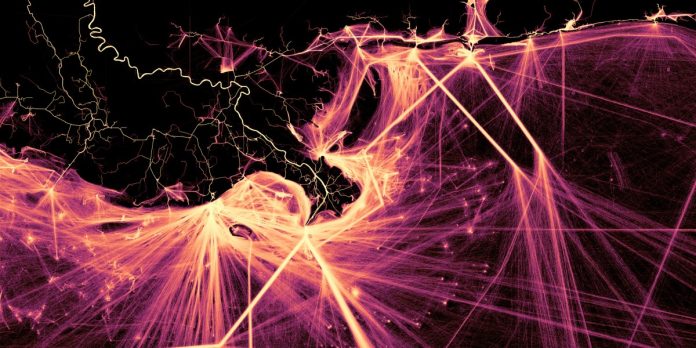

Zooming in on these maps, you would possibly see unusual geometric patterns of excellent circles, or strains in a grid. A few of these are fishing grounds, others are scientific surveys mapping the seafloor, and others characterize boats going to and from offshore oil rigs, particularly off Louisiana’s gulf coast.

Hiding in plain sight

Having a world, near-real-time system for monitoring the exact actions of all ships at sea appears like an amazing innovation—except you’re making an attempt to maintain your ships’ actions and cargoes secret.

In 2023, Bloomberg investigated how Russia evaded sanctions on its oil exports after the invasion of Ukraine by “spoofing”—transmitting pretend AIS knowledge—to mislead observers. Monitoring a fleet of rusting ships of questionable seaworthiness, reporters in contrast AIS knowledge with what they really noticed on the ocean—and found that the ships weren’t the place the info mentioned they had been.

Monitoring the fishing trade

Clusters of fishing vessels gravitating towards identified fishing grounds create a few of the most attention-grabbing patterns on the maps.

World Fishing Watch is a world nonprofit that makes use of AIS to observe the fishing trade, looking for to guard marine life from overfishing. Nevertheless it says that solely 2% of fishing vessels use AIS transmitters.

The group, which is backed by Google, the ocean conservation group Oceana, and the satellite tv for pc imagery firm SkyTruth, combines AIS knowledge with satellite tv for pc imagery and makes use of machine studying to categorise the varieties of fishing expertise getting used.

In a press launch saying the creation of World Fishing Watch, John Amos, the president and founding father of SkyTruth, mentioned: “A lot of what occurs out on the excessive seas is invisible, and that has been an enormous barrier to understanding and exhibiting the world what’s at stake for the ocean.”

A model of this story appeared in Stunning Public Knowledge (beautifulpublicdata.com), a publication that curates visually attention-grabbing datasets collected by authorities businesses.
