The brand new high-resolution Porsche LED fundamental headlights with HD matrix beam provide a high-resolution mild distribution as much as twice as vivid than earlier programs.
Porsche has developed the sunshine know-how of the following era with its new high-resolution HD matrix know-how. The core aspect of the innovation created in collaboration with companions is a chip that mixes over 16,000 individually controllable micro-LEDs onto the floor space the dimensions of a thumbnail. Of those LED chips, two are utilised for every headlight 4 per car. The headlights with HD matrix know-how subsequently provide a high-resolution mild distribution as much as twice as vivid on a floor 4 occasions bigger than earlier top-notch programs.
The motive force advantages from the extremely versatile mild that the brand new improvement makes potential due to extraordinarily homogeneous illumination. As well as, there are modern capabilities similar to lane illumination, building and narrow-lane mild and adaptive motorway high-beam lights. The high-performance excessive beam turns night time into day at a distance of as much as 600 metres. A brand new non-dazzling excessive beam perform is used for oncoming autos: giant areas to the suitable and left of the anti-dazzling hole change into considerably brighter.
The brand new HD matrix know-how provides one more extremely environment friendly element. As a result of the HD matrix headlights solely activate the pixels which can be really wanted at any given second, they devour significantly much less power that different high-resolution programs, whereas the quantity of sunshine stays the identical.
4-point headlight graphics may also be displayed at night time
Along with four-point daytime driving lights and static cornering lights, the brand new Porsche headlight contains two of the brand new HD matrix modules and two bi-functional modules for courtesy lighting and the auxiliary excessive beam. These 4 fundamental mild sources are organized in a four-point design attribute of the model. The earlier high headlight from Porsche, in contrast, options 4 courtesy modules and a central Matrix module in 84-pixel know-how.
The brand new HD matrix know-how additionally stands aside when it comes to design: for the primary time, the attribute Porsche four-point headlight graphics of the daytime operating lights may also be seen at night time when the brand new system is used with each high and low beams. The HD matrix headlights will likely be launched successively in several mannequin traces with an identical module know-how however tailored designs. Within the improvement course of, Porsche submitted over 25 patents for the modern know-how.
Worlds first high-resolution LED matrix mild
The brand new know-how should unite totally different, and generally contradictory, necessities in a single system. The intention is to distribute all mild capabilities amongst 4 items per headlight for design causes. Nonetheless, the person sources of sunshine ought to nonetheless mix in a method that gives homogeneous and highly effective illumination on the similar time. Pre-design simulations have been used to analyse which total system design would finest meet all necessities together with these of shoppers. In consequence, Porsche opted for the brand new and environment friendly HD matrix LED know-how with 16,384 pixels per module fairly than the utmost decision that’s technically possible.
The design of the headlight is clearly structured. 4 nearly squarely organized mild modules, every complemented by a slender daytime operating mild strip above the module, hint the models attribute four-point design by day and by night time. The 2 higher bi-functional modules are an identical and supply the courtesy lighting and auxiliary excessive beam with three LEDs every.
The guts of the brand new HD matrix know-how is the 2 decrease mild items. Every options an an identical LED array with built-in LED driver (ASIC) that generates an unprecedented high-resolution luminous flux in an space of simply 12.8 millimetres by 3.2 millimetres. The system controller corresponding to a robust graphics card not solely prompts but in addition controls the brightness of every of the 16,384 particular person light-emitting diodes per LED array in 1,024 steps. Totally different lenses, every with particularly floor optical glass, full the 2 HD modules.
The lenses produce totally different illumination angles. The wide-angle lens of the outer HD matrix modules illumination covers an angle of 40 levels of width by ten diploma of top. The inside Efficiency HD matrix module with telephoto lens radiates the sunshine at 20 levels by 5 levels. Its illumination is subsequently solely half as excessive and half as large, however considerably brighter. The sunshine distributed by the 2 HD modules overlap within the centre. The brand new headlight thereby combines large illumination with excessive depth within the central space.
Very best visibility in any state of affairs
The efficiency leap in mild know-how might be attributed to this environment friendly era of sunshine and the mixture of the 2 HD matrix modules with the 2 bi-functional modules. With a complete of 32,768 individually controllable pixels per headlight, the HD matrix modules generate direct high-resolution mild. Solely the sunshine that’s really required is generated. That is why it is called energetic matrix mild era.
The HD matrix mild illuminates your complete 40-degree horizontal and ten-degree vertical vary with a luminous flux of over 1,400 lumens, thereby producing one of many largest and brightest high-resolution illumination areas. It covers your complete excessive beam vary and begins simply in entrance of the car. The sunshine might be distributed in any method inside this space and this flexibility makes it potential to enhance present capabilities and introduce new ones at all times with the intention of providing the driving force the absolute best visibility in any state of affairs.
Optimised and new capabilities for higher security and luxury
Excessive beam with auxiliary excessive beam (high-performance excessive beam)
If the system doesn’t detect any autos driving forward or oncoming autos, and the automated excessive beam is energetic, the HD matrix modules change from dipped beam to excessive beam, and the auxiliary excessive beam of the higher bi-functional modules is mechanically switched on. This ensures a rise within the beam size and will increase the efficiency of the excessive beam. Greater than 600 metres if the street is illuminated.
Non-dazzling excessive beam with new perform
If the digicam detects a car forward or an oncoming car, the auxiliary excessive beam is deactivated and the car is selectively masked out by switching off the corresponding pixels of the HD matrix modules. The power that this frees up is transformed into extra, practical HD mild. The complete width of the obtainable HD mild is used to optimise the illumination of the non-dazzling excessive beam and to enhance the driving forces visibility with out dazzling different drivers. When anti-dazzling is activated, the quantity of sunshine from the HD matrix module to the suitable and left of the anti-dazzling hole is doubled, leading to important brightening of the remaining excessive beam vary.
Lane illumination
This perform is used for higher illumination of the cars personal lane within the type of a light-weight carpet. The lane between the street markings turns into considerably brighter. And this whatever the cars place within the lane. Whether or not the car is additional to the suitable, additional to the left or within the center the sunshine carpet adheres to the street markings as if it have been a magnet. The perform is activated solely on motorways or comparable roads. It allows early detection of hazardous objects and reduces lane adjustments by different, much less attentive drivers into the cars personal lane. Within the case of deliberate lane adjustments, the sunshine carpet is briefly widened to cowl each lanes when the marking is crossed, earlier than subsequently illuminating solely the brand new lane extra brightly as soon as the lane change is full.
Building and narrow-lane mild
When building zones or slender areas are detected, the sunshine carpet is mechanically diminished to the identical width because the car, together with mirrors, to brighten the lane and thus make it seen to the driving force. This visible assist allows drivers to higher assess their place within the slender lane in addition to overtaking manoeuvres. Steering and velocity corrections are demonstrably diminished, with lane holding and street security being enhanced consequently.
Adaptive motorway excessive beam
On motorways and comparable high-speed roads, the management system ensures the absolute best illumination of the driving forces lane whereas additionally optimally adapting the sunshine distribution to the circumstances on the motorway. The illumination is reduce off with a comfortable transition in the direction of the median strip, which prevents drivers within the oncoming lane being dazzled.
Animation as greeting and send-off
When locking and unlocking the car, the dipped beam of the four-point headlights ensures visibility and security in entrance of and across the car. The car sends the driving force off with a discreet animation: the HD matrix modules generate two headlight graphics in a four-point design that’s attribute of the model and which sweep horizontally over any partitions reverse or storage doorways, for instance, earlier than going out. The sunshine system then prompts the animation in reverse order when the parked car is unlocked and the driving forces door is opened.

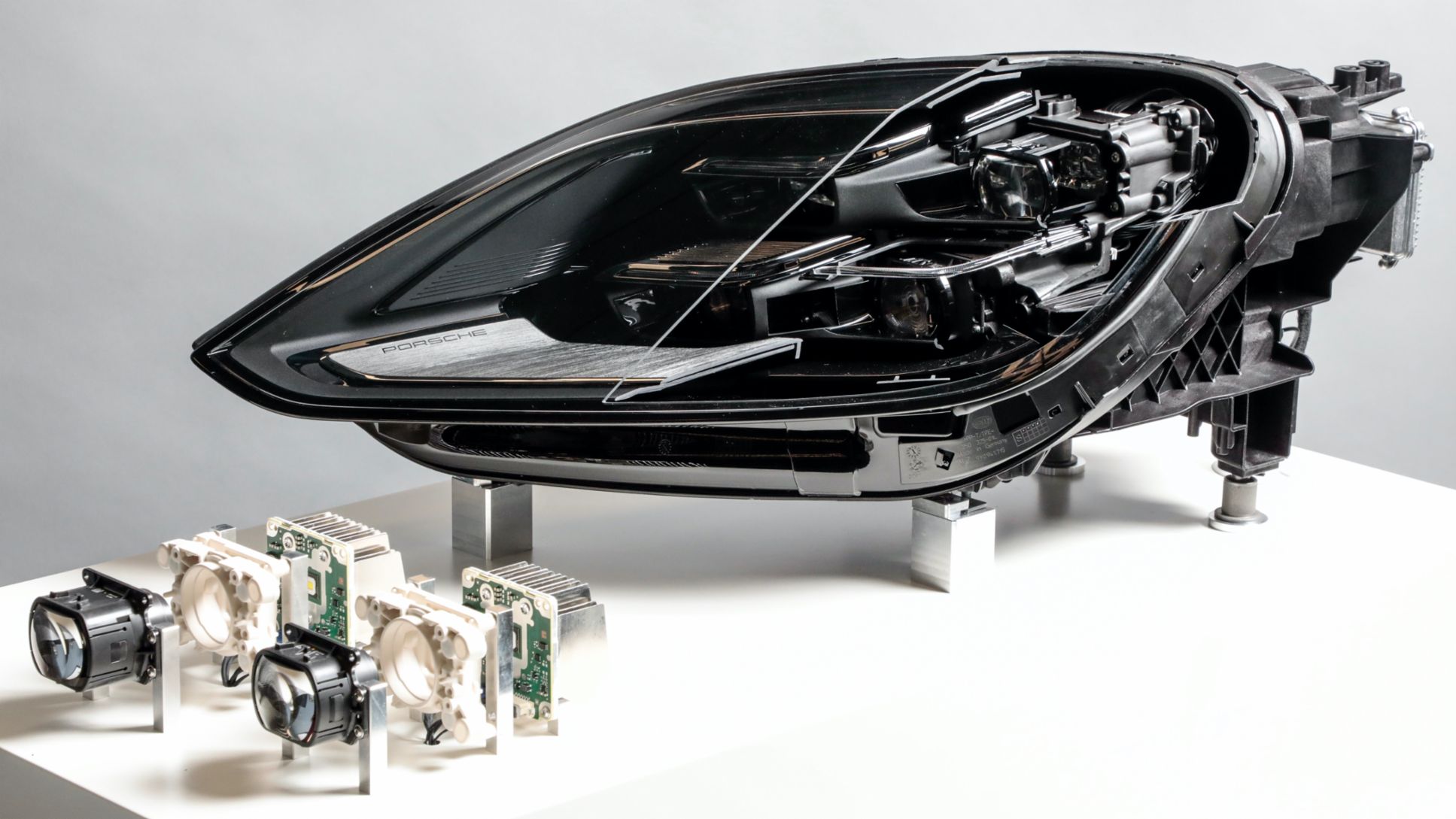

( Press Launch Picture: https://photos.webwire.com/prmedia/8/298446/298446-1.jpg )
