A Clear, Inexperienced Option to Recycle Photo voltaic Panels

Inside a transport container in an industrial space of Venice, the Italian startup 9-Tech is taking a crack at a looming international downside: the best way to responsibly recycle the 54 million to 160 million tonnes of photo voltaic modules which are anticipated to achieve the top of their productive lives by 2050. Recovering the supplies received’t be simple. Photo voltaic panels are constructed to face up to any surroundings on Earth for 20 to 30 years, and even after sitting within the solar for 3 a long time, the {hardware} is tough to dismantle. In reality, most recycling amenities trash the silicon, silver, and copper—essentially the most helpful however least accessible supplies in outdated photo voltaic panels—and get well solely the aluminum frames and glass panes.

The startup 9-Tech operates its pilot plant out of a modified transport container housed on the Inexperienced Propulsion Laboratory within the industrial port of Marghera in Venice.Luigi Avantaggiato

The necessity for recycling will solely develop because the world more and more deploys solar energy. Greater than
1.2 terawatts of solar energy has already been deployed globally. Photo voltaic panels are presently being distributed at a fee of greater than 400 gigawatts per yr, and the speed is predicted to extend to a whopping 3 TW per yr by 2030, in line with a literature evaluation by researchers on the Nationwide Renewable Power Laboratory (NREL).

In an try to cease a mountain of photovoltaic rubbish from accumulating, researchers are pursuing higher recycling strategies.
Essentially the most superior strategies proposed to this point can get well at the least 90 % of the copper, silver, silicon, glass, and aluminum in a crystalline silicon PV module. However these processes are costly and sometimes contain poisonous chemical substances. No recycling technique has confirmed to be as low-cost as landfilling, and only a few function on an industrial scale, says Garvin Heath, principal environmental engineer at NREL, who manages a group of international experts assigned by the Worldwide Power Company to investigate PV sustainability.

The founders of
9-Tech say they’ve a greater method. Their course of is a loud one involving a combustion furnace, an ultrasound bathtub, and mechanical sorting, the vibrations of which shake the ground of the modest freight container the place they’ve been testing their operation for almost two years. The corporate makes use of no poisonous chemical substances, releases no pollution into the surroundings, and recovers as much as 90 % of the supplies in a photo voltaic panel, says Francesco Miserocchi, chief expertise officer at 9-Tech.

Bits of silicon and glass are separated from the remainder of the panel.
Luigi Avantaggiato

Easy methods to Recycle Photo voltaic Panels

After the body, glass, and junction field are faraway from a PV panel, the internal, bendable layers of silicon, polymers, and steel conductors stay. Employees lower the internal layers into massive sections in preparation for the oven.Luigi Avantaggiato

The corporate tailors its course of to crystalline silicon photo voltaic panels, which make up 97 percent of the global PV market. The panels sometimes consist of an array of silicon wafers doped with boron and phosphorus, and topped with an antireflective coating of silicon nitride. Silver conductors are display screen printed onto the wafer floor, and copper conductors are soldered onto the array in a grid sample. To guard the supplies from moisture and injury, producers laminate all the array in adhesive polymers—normally ethylene-vinyl acetate. Then they enclose the laminated array in sheets of tempered glass, body the entire thing in aluminum, seal the sides, and fasten a junction field on the again.

When it’s time to recycle a panel, probably the most difficult steps is eradicating the polymers, which persist with every little thing. “It’s not simply the sides or a few dots of glue. It’s a whole floor—a number of sq. toes—of polymer,” says Heath. The polymer may be burned off, however this releases carbon monoxide, hydrofluoric acid, and different dangerous pollution. Separating the silver conductors additionally proves difficult as a result of they’re utilized in a really skinny layer–about 10 to twenty micrometers–that’s strongly connected to the silicon. Eradicating them sometimes includes poisonous reagents corresponding to hydrofluoric acid, nitric acid, or sodium hydroxide.

The workforce at 9-Tech addresses these challenges in two methods. They get well the silver utilizing ultrasound somewhat than poisonous chemical substances, and though they burn the polymers, they seize the pollution emitted.

Layers of silicon and polymer are fed right into a steady combustion furnace, which heats the supplies to over 400 °C, vaporizing the polymers.9-Tech

The method on the firm’s pilot plant begins with staff manually eradicating the aluminum body, junction field, and tempered glass. This leaves a sandwich of polymers, silicon wafers, and steel conductors. With out the body or glass, the sandwich layers bend, shattering the delicate silicon into small items. Employees crack the tempered glass after which ship all of the supplies, that are largely nonetheless in place due to the polymers, right into a steady combustion furnace. Heated to over 400 °C, the polymers vaporize, and a filter captures the pollution. The system additionally captures the warmth from the furnace and reuses it for vitality effectivity.

A mechanical curler separates the copper grid after the PV supplies exit the furnace.Luigi Avantaggiato

After the supplies exit the oven, mechanical sieves separate the copper, glass, and silicon.High: Luigi Avantaggiato; Backside: 9-Tech

Because the remaining materials exits the furnace, a curler mechanically strips out the copper. A sequence of sieves type the damaged bits of glass and silicon primarily based on thickness. The silicon items, nonetheless laced with silver, are immersed in a shower of natural acid and handled with ultrasound to loosen the bonds between the weather. The ultrasound works by propagating sound waves into the acid bathtub, leading to alternating high- and low-pressure cycles. If the waves are intense sufficient, they create cavitation bubbles that mechanically work together with the fabric, inflicting the silver to dislodge from the silicon, explains Pietrogiovanni Cerchier, CEO at 9-Tech.

Lastly, staff take away the silicon fragments from the ultrasound bathtub with a mesh web. This leaves a superb silver mud within the resolution, which may be recovered by filtration or centrifuge. All advised, Cerchier says, 9-Tech’s pilot plant can get well 90 % of the silver, 95 % of the silicon, and 99 % or extra of the copper, aluminum, and glass from a PV module. What’s extra, the fabric is taken into account extremely pure, which will increase the varieties of functions for which it may be reused.

Employees at 9-Tech immerse silver-laced silicon items in a shower of natural acid and deal with it with ultrasound to loosen the bonds between the weather.9-Tech

The startup’s recycling course of is dearer than current strategies that get well solely aluminum and glass. However the extraction of high-purity silicon, silver, and copper ought to offset the additional price, Miserocchi says. Plus, it’s extra environment friendly than mining for virgin components. You’ll be able to extract about 500 grams of silver from a tonne of photo voltaic panels, however solely 165 grams of silver from a tonne of ore, he says. “A photovoltaic panel on the finish of its life nonetheless has loads to present,” says Miserocchi. “It may be thought-about a small mine of treasured components.”

Silver emerges from the silicon bathtub in a superb mud. 9-Tech

Dozens of New Methods to Recycle PV Panels

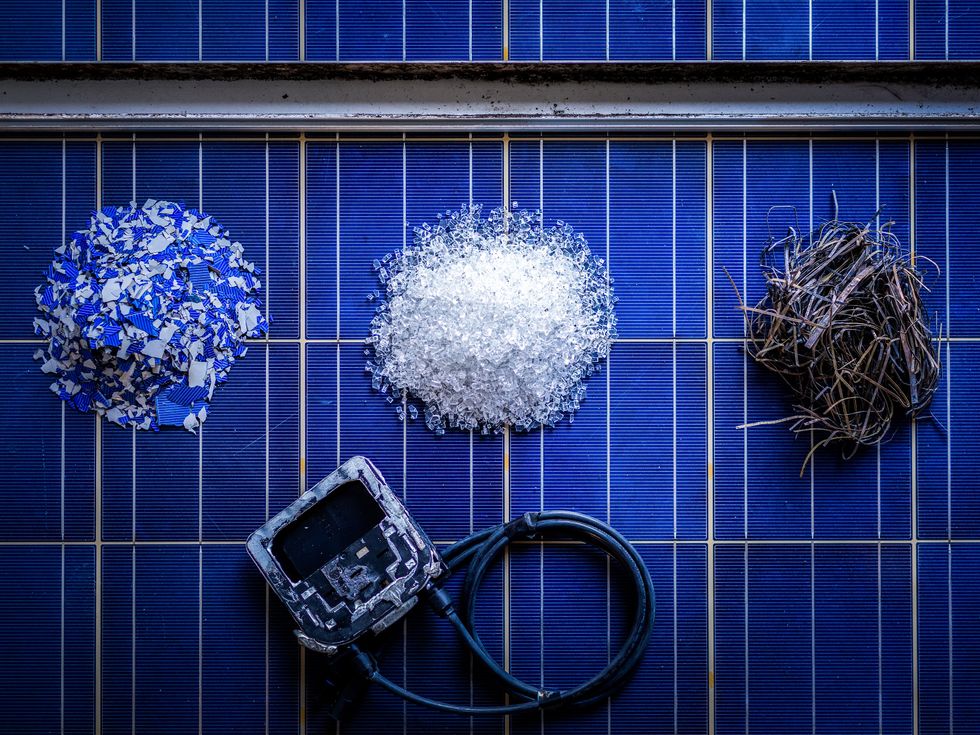

Excessive-purity copper, glass, and silicon are recovered from 9-Tech’s PV-panel recycling course of.Luigi Avantaggiato

The 9-Tech workforce will know extra concerning the profitability of their technique after they construct a bigger demonstration facility over the subsequent 18 months. That plant, to be situated in the identical industrial district of Venice because the transport container, will be capable to deal with as much as 800 photo voltaic modules a day. Their pilot plant processes solely about seven modules a day.

The corporate’s strategy is one among many recycling strategies for crystalline silicon PV panels in growth. A
comprehensive review revealed in April within the Journal of Cleaner Manufacturing recognized dozens of different efforts globally, together with thermal, chemical, mechanical, and optical approaches. The commonest technique includes grinding the silicon, steel, and polymer layers into small items, separating them by density, and recovering the silicon and steel with a thermal or chemical course of. Different processes embrace laser irradiation, high-voltage pulses, optical sorting, pyrolysis, chemical solvents, etching, and delaminating with a scorching knife.

Driving this innovation, partially, are laws adopted by the European Union in 2012. The foundations require all PV panel producers within the EU to run take-back or recycling applications, or associate with different recycling schemes. Consequently, Germany, which has essentially the most solar energy capability in Europe, has one among
the largest PV recycling systems on the earth.

“A photovoltaic panel on the finish of its life nonetheless has loads to present,” says Miserocchi. “It may be thought-about a small mine of treasured components.”

However recycling is a high-volume enterprise, and apart from catastrophic climate occasions that wipe out solar energy stations, spent photo voltaic modules attain recyclers at a relative trickle. After which there’s the problem of discovering a second life for the supplies after they’re recovered—a provide chain that’s not nicely developed.

First Photo voltaic, a world PV producer primarily based in Tempe, Ariz., addressed each of those points on a big scale by constructing an
in-house recycling program with seven amenities in 5 international locations. The corporate makes cadmium telluride thin-film photo voltaic panels that consumers should purchase with the recycling value in-built. On the finish of the panels’ lives, consumers ship them again to First Photo voltaic for recycling into new merchandise. The semiconductor materials may be recycled as much as 41 occasions, giving it a life-span of greater than 1,200 years, in line with the corporate. However the glass isn’t pure sufficient to be reused in photo voltaic modules, so the corporate plans to provide it to float-glass producers to be used in home windows and doorways.

The challenges with recycling have impressed researchers to rethink the best way crystalline photo voltaic panels are made. For instance, some producers try to cut back or eradicate the difficult-to-recover silver, changing it with different conductive metals. And a workforce at NREL
demonstrated in February a way to eliminate polymers in PV panels by laser welding the glass panes as an alternative, which can do a greater job sealing out moisture. That approach could lend itself to perovskite solar modules, a promising expertise that’s significantly inclined to moisture and corrosion.

“Recycling shouldn’t be the one technique,” says Heath. Individuals ought to contemplate alternative routes to restore or reuse photo voltaic panels to increase their lives earlier than resorting to recycling, he says.

Further reporting by Luigi Avantaggiato
